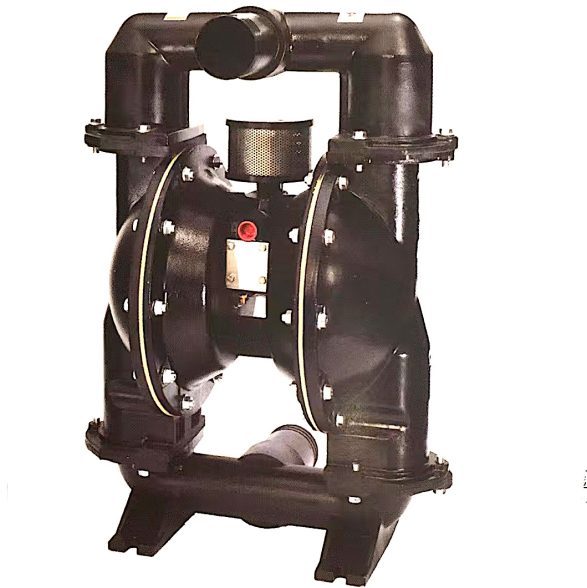

| Model | TY90798 |
| Model Numbering Designation | 9, Specialty Tools 0, Pumps 7, Diaphragm Pumps 98, Max Flow (980 LPM) |
| Self Priming Head | 8 m ( 26 ft ) |
| Max Air Inlet Pressure | 0.83 MPa ( 120 PSI ) |
| Max. Fluid Inlet Pressure | 0.069 MPa ( 10 PSI ) |
| Suction Manifold | 3 in. |
| Outlet Manifold | 3 in. |
| Max. Flow | 980 LPM ( 259 GPM) |
| Working Flow | 450 LPM ( 119 GPM) |
| Max Particle Diameter | 9.5 mm ( 3/8 in.) |
| Working Temperature | – 40 ℃ thru 107 ℃ ( -40 ℉ thru 224 ℉) |
| Working Outlet Pressure | 0.2 MPa ( 29 PSI ) |
| Noise Level | 80 dBA |
| Weight | 50.9 kg ( 112 lb) |
| Pump Body | Low Pressure casted 6061 Aluminium Alloy |
| Diaphragm | Santoprene or PTFE or Fluoro Rubber |
| Valve Ball | Santoprene or PTFE or Fluoro Rubber |
| Valve Seat | Santoprene or PTFE or Fluoro Rubber |
| Intermediate | Low Pressure casted 6061 Aluminium Alloy |
| Features |
|
| SKU | 588202 |
