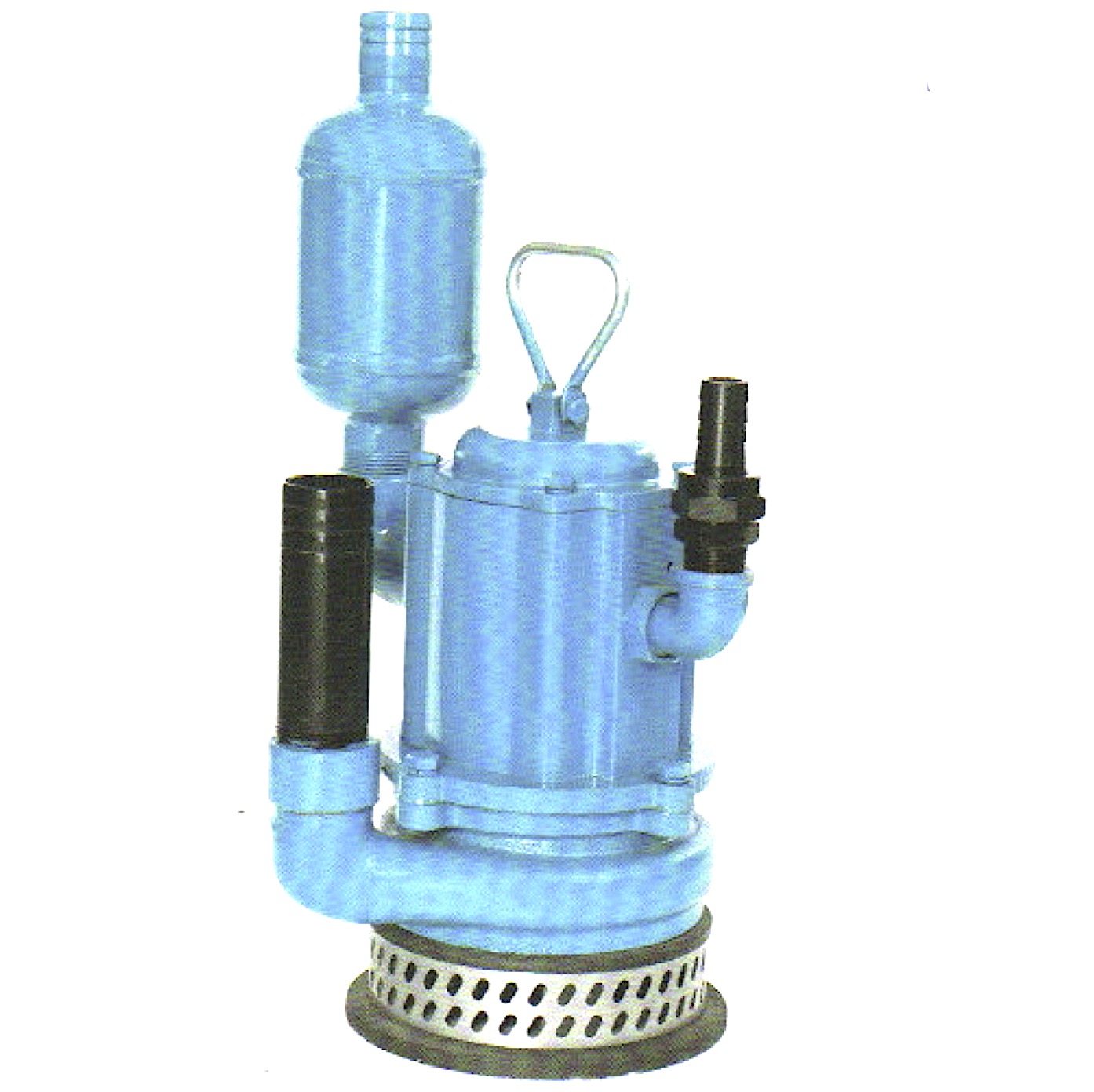

| Model | TY90128V |
| Model Numbering Designation | 9, Specialty Tools
0, Pumps 1, Dewatering Pumps 28, Max Flow (28 m3/hr) |
| Current | Pneumatic |
| Working Flow | 88 GPM (20 m3/hr) |
| Working Head | 70 m (231 ft.) |
| Max. Flow | 123 GPM (28 m3/hr) |
| Max Head | 115 m (376 ft.) |
| Suspended Solids Max. Dia. | 8 mm (5/16 in.) |
| Working Air pressure | 0.3 Mpa – 0.7 Mpa (43 PSI – 101 PSI) |
| Air Consumption | 5 m3/min – 6 m3/min ( 176 CFM – 211 CFM) |
| Air Inlet | 16mm – 25mm (5/8 in. – 1 in.) |
| Water Hose | 32mm – 48mm (1-1/4 in. – 1-7/8 in.) |
| Working Temperature | 5℃-40 ℃ |
| Fluid PH Value | 4 – 10 |
| Weight | 23.6 kg (51.9 lb) |
| Pump Body | Cast Iron |
| Motor Housing | 6061 Aluminium Alloy |
| Vane | Polymer Synthetic or Graphite Carbon Fibers |
| Impeller | Cast Iron |
| Features | Lubrication free. |
| SKU | 588082 |
