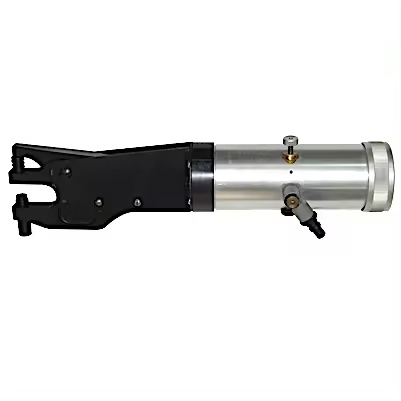

| MODEL | TY86895-A40 |
| MODEL NUMBERING DESIGNATION | 8, FASTENING TOOLS
6, RIVETERS 8, SQUEEZERS 95, STROKE(9.5mm) A, Alligator Yoke 40, Reach (40mm) |
| RIVET CAPACITY | 4.0 mm (5/32”) |
| MAX FORCE | 8,812 lb(39,200 N) (4 ton) |
| RIVET SQUEEZER SET/DIES | M8 |
| REACH | 40mm (1-9/16″) |
| THROAT GAP | 32 mm (1-1/4”) |
| CLOSED HEIGHT | 26 mm (1-1/32″) |
| WORKING PRESSURE | 71 PSI |
| AIR CONSUMPTION | 75 CFM @ 71 PSI |
| STROKE | 9.5mm (3/8”) |
| WEIGHT | 7.0 KG (15.4 lbs) |
| LENGTH | 410mm (16.1 “) |
| CURRENT | Pneumatic |
| AIR INLET | 1/4” |
| AIR HOSE | 3/8” |
| SKU | 370112 |
