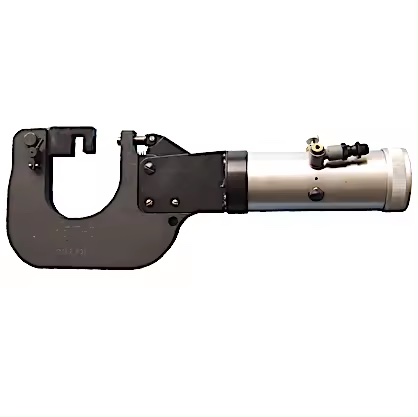

| MODEL | TY86875-C90 |
| MODEL NUMBERING DESIGNATION | 8, FASTENING TOOLS
6, RIVETERS 8, SQUEEZERS 75, STROKE(7.5mm) C, C Yoke 90, Reach (90.0mm) |
| RIVET CAPACITY | 5.0 mm (3/16”) |
| MAX FORCE | 39200N (8,810 lb) (4.0 ton) |
| RIVET SQUEEZER SET/DIES | M8 |
| REACH | 90.0mm (3-9/16”) |
| THROAT GAP | 90.0mm (3-9/16”) |
| CLOSED HEIGHT | 60.0mm (2-3/8”) |
| WORKING PRESSURE | 71 PSi |
| AIR CONSUMPTION | 75 CFM @ 71 PSI |
| STROKE | 7.5mm (5/16”) |
| WEIGHT | 7.0 kg (15.4 lb) |
| LENGTH | 463.0mm (18.2”) |
| CURRENT | Pneumatic |
| AIR INLET | 1/4” |
| AIR HOSE | 3/8” |
| SKU | 370171 |
