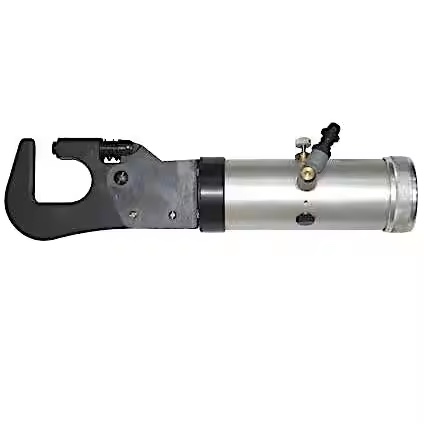

| MODEL | TY86875-C39 |
| MODEL NUMBERING DESIGNATION | 8, FASTENING TOOLS
6, RIVETERS 8, SQUEEZERS 75, STROKE(7.5 mm) C, C Yoke 39, Reach (39.0mm) |
| RIVET CAPACITY | 5.0 mm (3/16”) |
| MAX FORCE | 39200N (8,810 lb) (4.0 ton) |
| RIVET SQUEEZER SET/DIES | M8 shank |
| REACH | 39.0mm (1-1/2”) |
| THROAT GAP | 42.0mm (1-5/8”) |
| CLOSED HEIGHT | 29.0mm (1-1/8”) |
| WORKING PRESSURE | 71 PSi |
| AIR CONSUMPTION | 75 CFM @ 71 PSI |
| STROKE | 7.5mm (5/16”) |
| WEIGHT | 7.0 kg (15.4 lb) |
| LENGTH | 367.0mm (14.4”) |
| CURRENT | Pneumatic |
| AIR INLET | 1/4” |
| AIR HOSE | 3/8” |
| SKU | 370181 |
