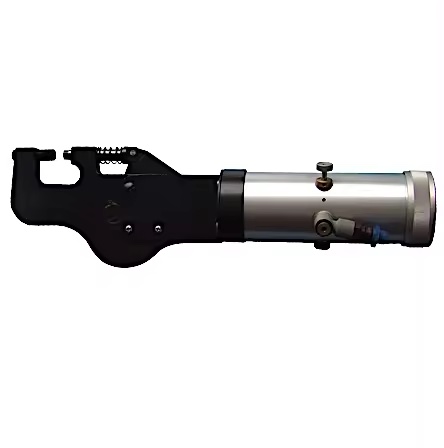

| MODEL | TY86875-C30 |
| MODEL NUMBERING DESIGNATION | 8, FASTENING TOOLS
6, RIVETERS 8, SQUEEZERS 75, STROKE(7.5mm) C, C Yoke 30, Reach (30.0mm) |
| RIVET CAPACITY | 5.0 mm (3/16”) |
| MAX FORCE | 39200N (8,810 lb) (4.0 ton) |
| RIVET SQUEEZER SET/DIES | M8 shank |
| REACH | 30.0mm (1-3/16”) |
| THROAT GAP | 40.0mm (1-9/16”) |
| CLOSED HEIGHT | 20.0mm (3/4”) |
| WORKING PRESSURE | 71 PSi |
| AIR CONSUMPTION | 75 CFM @ 71 PSI |
| STROKE | 7.5mm (5/16”) |
| WEIGHT | 7.0 kg (`5.4 lb) |
| LENGTH | 422.0mm (16.6”) |
| CURRENT | Pneumatic |
| AIR INLET | 1/4” |
| AIR HOSE | 3/8” |
| SKU | 370177 |
