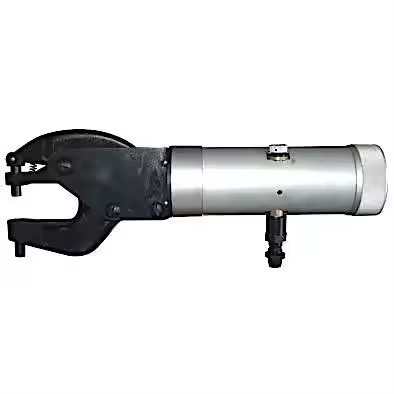

| MODEL | TY86855-A32 |
| MODEL NUMBERING DESIGNATION | 8, FASTENING TOOLS
6, RIVETERS 8, SQUEEZERS 55, STROKE(5.5mm) A, Alligator Yoke 32, Reach (32.0mm) |
| RIVET CAPACITY | 5.0 mm (3/16”) Aluminium |
| MAX FORCE | 25,000N (5,620 lb) (2.55 ton) |
| RIVET SQUEEZER SET/DIES | M8 |
| REACH | 32.0mm (1-1/4”) |
| THROAT GAP | 22.0mm (7/8”) |
| CLOSED HEIGHT | 15.0mm (5/8”) |
| WORKING PRESSURE | 90 PSi |
| AIR CONSUMPTION | 75 CFM @ 90 PSI |
| STROKE | 5.5mm (7/32”) |
| WEIGHT | 7.0 kg (15.4 lb) |
| LENGTH | 305.0mm (12.0”) |
| CURRENT | Pneumatic |
| AIR INLET | 1/4” |
| AIR HOSE | 3/8” |
| SKU | 370120 |
