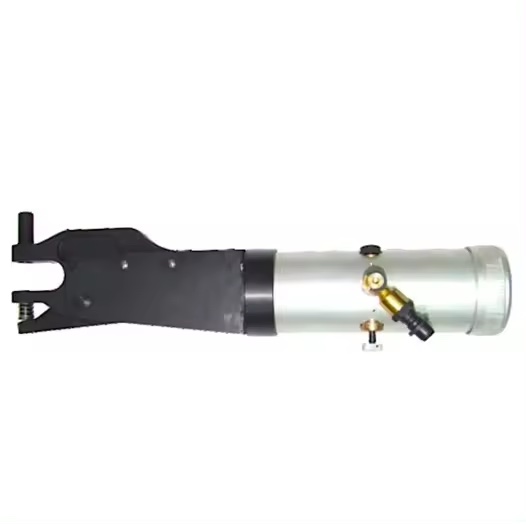

| MODEL | TY86850-A28 |
| MODEL NUMBERING DESIGNATION | 8, FASTENING TOOLS
6, RIVETERS 8, SQUEEZERS 50, STROKE(5.0mm) A, Alligator Yoke 28, Reach (28.0mm) |
| RIVET CAPACITY | 4.0 mm (5/32”) Aluminium |
| MAX FORCE | 39200N (8,810 lb) (4.0 ton) |
| RIVET SQUEEZER SET/DIES | M8 |
| REACH | 28.0mm (1-1/8”) |
| THROAT GAP | 26.0mm (1-1/32”) |
| CLOSED HEIGHT | 18.0mm (0.7”) |
| WORKING PRESSURE | 90 PSi |
| AIR CONSUMPTION | 75 CFM @ 90 PSI |
| STROKE | 5.0 mm (3/16”) |
| WEIGHT | 7.0 kg (15.4 lb) |
| LENGTH | 390.0mm (15.4”) |
| CURRENT | Pneumatic |
| AIR INLET | 1/4” |
| AIR HOSE | 3/8” |
| SKU | 370121 |
