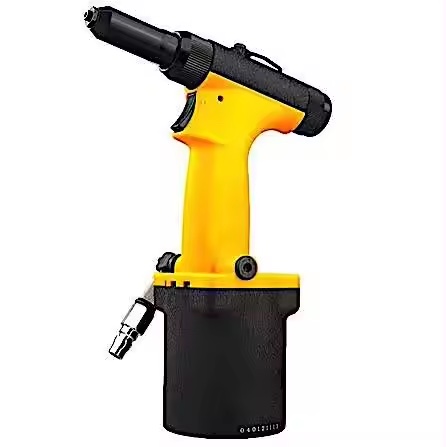

| MODEL | TY86221 |
| MODEL NUMBERING DESIGNATION | 8, FASTENING TOOLS
6, RIVETERS 2, HYDRAULIC RIVETERS 21: STROKE (21 mm) |
| RIVET PIN CAPACITY (ALUMINUM) | 3/32″, 1/8″, 5/32″, 3/16”
(2.4mm,3.2mm,4.0mm,4.8mm) |
| RIVET PIN CAPACITY (STEEL) | 3/32″, 1/8″, 5/32″
(2.4mm,3.2mm,4.0mm) |
| NOSEPIECE SIZE | 3/32″, 1/8″, 5/32″, 3/16″
(2.4mm,3.2mm,4.0mm,4.8mm) |
| MAX PULL FORCE | 3,970 lb @ 90PSI |
| STROKE | 21 mm |
| WEIGHT | 1.17 KG (2.6 lbs) |
| DIMENSION (LENGTH * HEIGHT) | 190mm (7-1/2″) x 270mm (10-5/8″) |
| MECHANISM | Hydraulic Riveter |
| CURRENT | Pneumatic |
| AIR CONSUMPTION | 3 CFM @ 90PSI |
| AIR INLET | 1/4” |
| AIR HOSE | 3/8” |
| SKU | 357987 |
