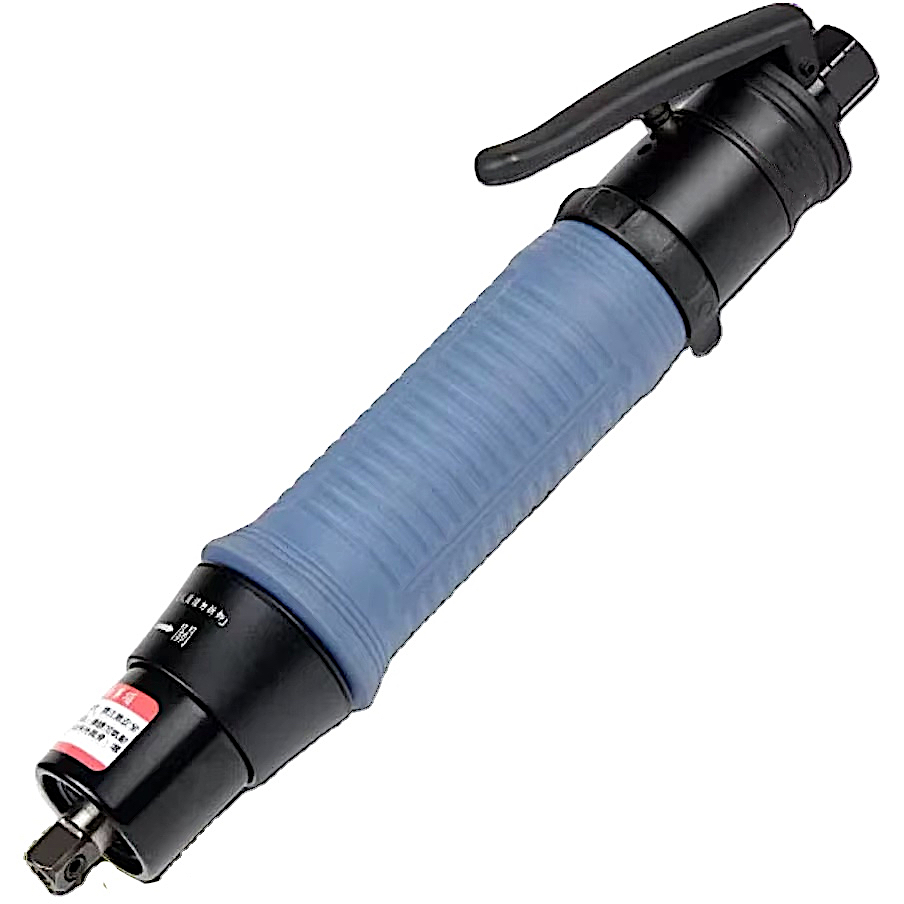

| MODEL | TY5P130LS |
| MODEL NUMBERING DESIGNATION | 5, Bolting Tools P, Pneumatic Pulse Tools 1, Shut – Off Type 30, Free Speed (300 rpm) L, Lever Start |
| DRIVE | 3/8 “ |
| FREE SPEED | 300RPM |
| BOLT CAPACITY | M5- M9.3 (Common) M4 – M7.2(Self Tapping) |
| TORQUE | 2.94Nm – 17.64 Nm (30kgf.cm – 180kgf.com) |
| ACCURACY | ±3 |
| AIR CONSUMPTION | 20 CFM @ 90PSI |
| AIR INLET | 1/4” |
| AIR HOSE | 3/8” |
| SOUND POWER | 78 dB(A) |
| LENGTH | 265mm (10-7/16’) |
| HANDLE TYPE | Straight Grip |
| REVERSIBLE | YES |
| WEIGHT | 1.06kg (2.3lb) |
| SKU | 528821 |
| CURRENT | PNEUMATIC |
