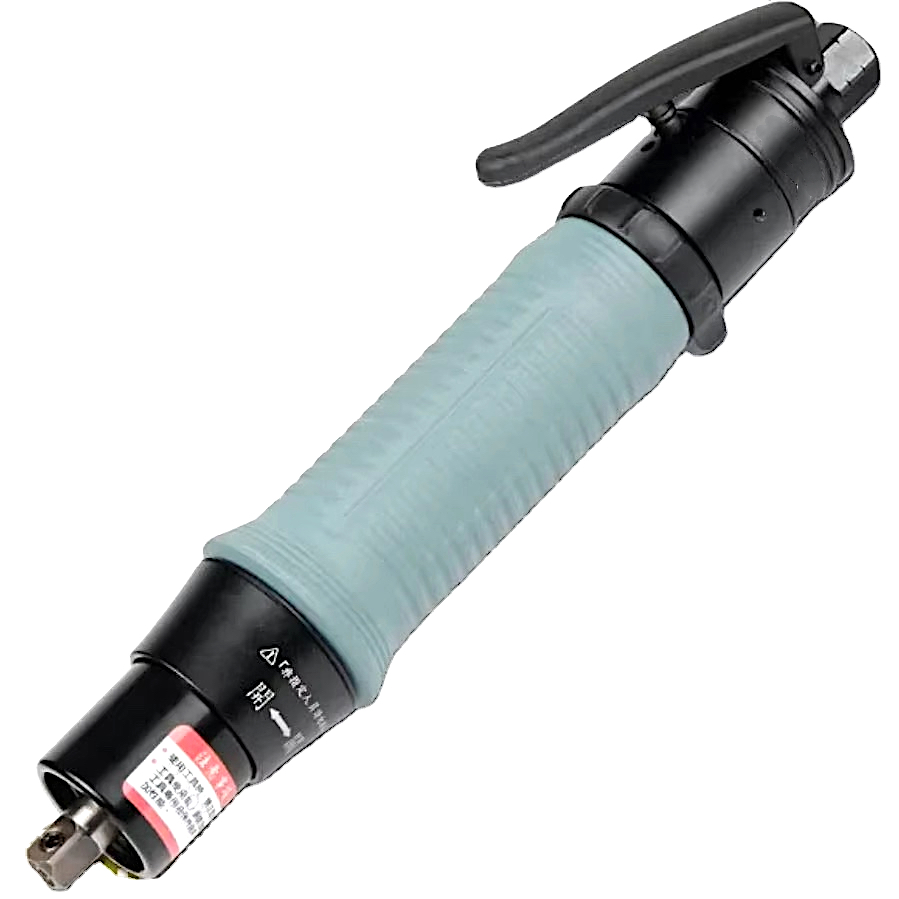

| MODEL | TY5P125LS |
| MODEL NUMBERING DESIGNATION | 5, Bolting Tools P, Pneumatic Pulse Tools 1, Shut – Off Type 25, Free Speed (250 rpm)L, Lever Start S, Straight Grip |
| DRIVE | 3/8 “ |
| FREE SPEED | 250RPM |
| BOLT CAPACITY | M6- M11 (Common) M4.9 – M8.7(Self Tapping) |
| TORQUE | 4.9 Nm – 27.4 Nm(50kgf.cm – 280kgf.cm) |
| ACCURACY | ±3 |
| AIR CONSUMPTION | 20 CFM @ 90PSI |
| AIR INLET | 1/4” |
| AIR HOSE | 3/8” |
| SOUND POWER | 78 dB(A) |
| LENGTH | 265mm (10-7/16’) |
| HANDLE TYPE | Straight Grip |
| REVERSIBLE | YES |
| WEIGHT | 1.1 kg(2.4 lb) |
| SKU | 528822 |
| CURRENT | PNEUMATIC |
