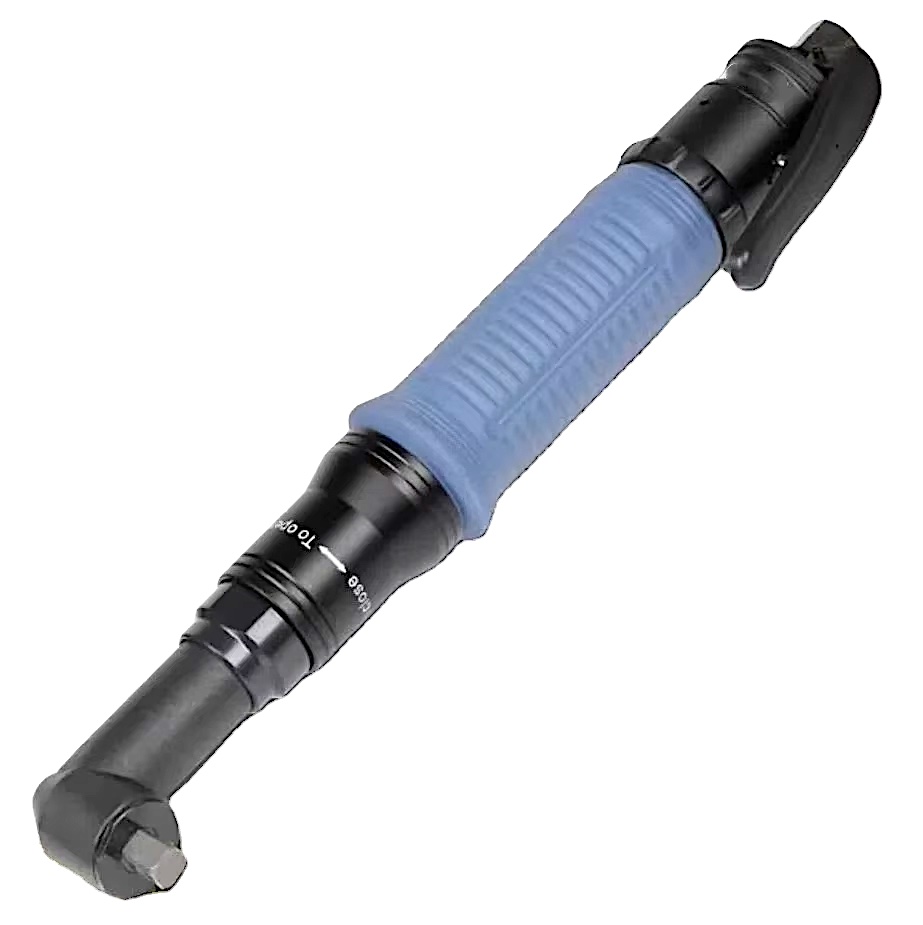

| MODEL | TY5P125LA |
| MODEL NUMBERING DESIGNATION | 5, Bolting Tools P, Pneumatic Pulse Tools 1, Shut – Off Type 25, Free Speed (250 rpm) L, Lever Start |
| DRIVE | 3/8 “ |
| FREE SPEED | 250 RPM |
| BOLT CAPACITY | 6.0mm-11.0mm(Common) 4.9mm-8.7mm(Self Tapping) |
| TORQUE | 4.9Nm – 27.4Nm (50kgf.cm-280kgf.cm) |
| ACCURACY | ±3 |
| AIR CONSUMPTION | 20 CFM @ 90PSI |
| AIR INLET | 1/4” |
| AIR HOSE | 5/16” |
| SOUND POWER | 78 dB(A) |
| LENGTH | 338mm(13.8”) |
| HANDLE TYPE | Angle Grip |
| REVERSIBLE | YES |
| WEIGHT | 1.4 kg( 3.0 lb) |
| SKU | 528982 |
| CURRENT | PNEUMATIC |
