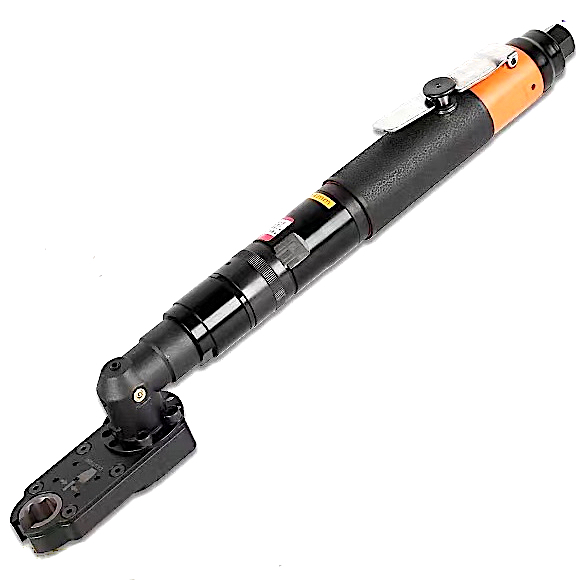

| MODEL | TY5E230M17 |
| MODEL NUMBERING DESIGNATION | 5, Bolting Tools
E, Open End Wrench 230, Free Speed (230 rpm) M17, For Max 17mm Bolt |
| SPEED | 230 RPM |
| BOLT CAPACITY | 7 mm – 17 mm |
| WEIGHT | 1.67 kg (3.7 lb) |
| TORQUE RANGE | 4.5 ft.lb – 11.0 ft.lb (6 Nm – 15 Nm) |
| LENGTH | 413 mm (16-1/4 in.) |
| CURRENT | PNEUMATIC |
| AIR CONSUMPTION | 7 CFM @ 90 PSI |
| AIR INLET | 1/4” |
| REC AIR HOSE | 3/8” |
| EXHAUST VENT | Rear |
| SOUND POWER | 87 dB(A) |
| SKU | 528801 |
⇔Buy TY5E230M17
Description

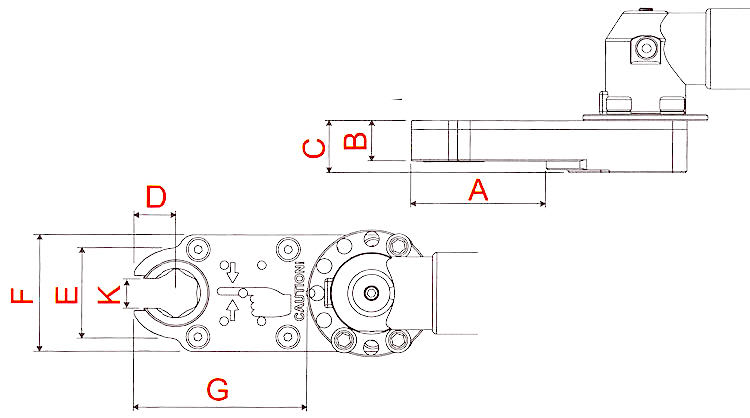

| Model | TY5E230M17 | TY5E150M24 | TY5E115M32 | TY5E100M55 |
| A | 46.2 | 57.2 | 71.0 | 92.0 |
| B | 14.0 | 14.0 | 14.0 | 14.0 |
| C | 18.0 | 18.0 | 18.0 | 19.0 |
| D | 13.6 | 20.6 | 26.6 | 40.0 |
| E | 31.0 | 46.6 | 59.0 | 86.0 |
| F | 40.0 | 48.0 | 59.0 | 86.0 |
| G | 58.8 | 83.2 | 106.6 | 149.0 |
