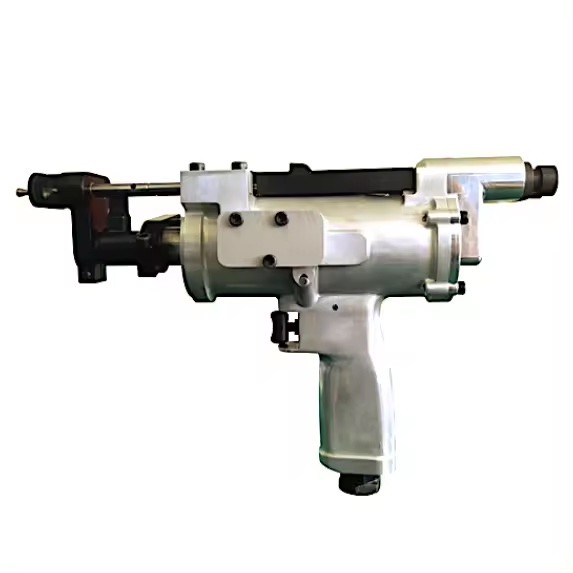

| MODEL | TY13260TA (Fig 2) |
| MODEL NUMBERING DESIGNATION | 1, Drilling Tools 3, Pistol Drills 2, Nutplate Drill Motors 60, Free Speed (6,000rpm) T, For Twin Lug nutplates A, Identity Digit |

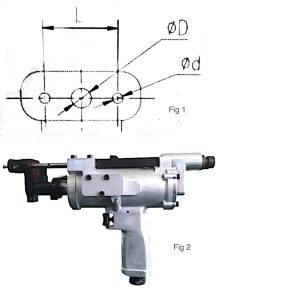

| PILOT HOLE DIAMETER | 4.8 mm (3/16 in.) (D, Fig 1) |
| DRILL HOLE TO DRILL HOLE SPACING | 16 mm (.630 in.) (L, Fig 1) |
| DRILL HOLE SIZE | 2.56 mm (3/32 in. ) (d, Fig 1) |
| COUNTERSINK PRECISION | 0.02 mm |
| FREE SPEED | 6,000 rpm |
| GRIP | PISTOL |
| POWER | 450 W (0.6 hp) |
| WEIGHT | 2.4 kg (5.3 lb) |
| AIR CONSUMPTION | 22 CFM @ 90 PSI |
| CURRENT | PNEUMATIC |
| SKU | 359877 |
| SOUND POWER | 99 dB(A) |
| TY13260TA CUTTER CHART | |
| SHANK THREAD | #8-32 UNC 3A (.164 in.) |
| SHANK DIA. | .1875 in. |
| DRILL DIA. | # 40 |
| DRILL LENGTH | 10.7 mm (.420 in.) |
